The Vias

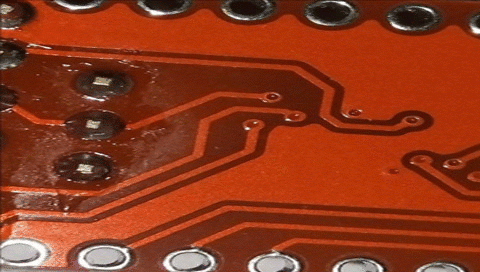

Vias are conductive holes in a PCB. They connect the top to the bottom copper layer as needed. During PCB fabrication, desired holes for vias are drilled on the PCB using a thin cutter or laser cutter. To make vias, the holes are then plated to become conductive. During this plating process discontinuities come about. When the conductive copper layer doesn’t adhere to the cylindrical inside surface of the PCB via, the PCB Design will have discontinuities (gaps) and develop other unique problems in your PCB. This may not be easy to troubleshoot. This problem is often caused by rough drilling or fast drilling which causes the internal structure of the hole to break, rendering the hole defective for an even and uniform copper deposition.
The solution to this problem is to ensure that you always drill a smooth hole before a via is made. This means using the recommended tool and applying the tight force for the hole drilling in PCB Fabrication.
Missing solder mask
This is another common problem of PCB fabrication is that affect most PCBs. When the space between the pads is too small, the solder mask will not be deposited between the closely packed pads. This will make the PCB vulnerable to short circuit; as soon as during the assembly and testing process. This problem also shortens the life of a PCB since it will be exposed to oxygen and moisture which are good ingredients for rust. SMD pads for microcontrollers are the most vulnerable.
The solution to this problem can be taken care of during the PCB Design stage, in the software. Again, this is achieved by sticking to the manufacturers recommended clearances, copper trace and the size of the copper pads. This keeps the traces and pads spaced out and the copper mask will readily rest between the pads.
From WellPCB
